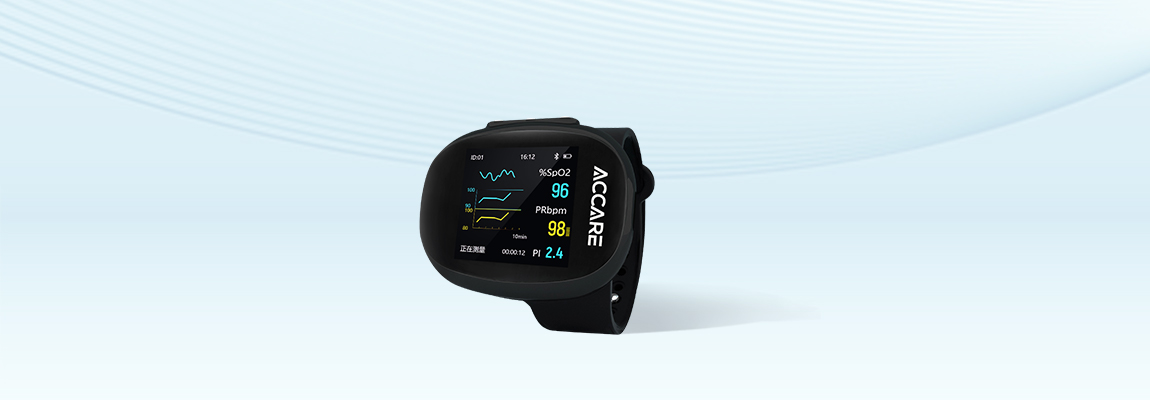

WS20A

WS20A

Accurate Sleep Monitor is a medical-grade sleep monitoring device designed based on the American Academy of Sleep Medicine (AASM) and clinical medical standards. It can monitor such parameters as SpO2, PR, PI, sleep stages and sleep cycle, and generate detailed sleep assessment reports. It is intended for people with snoring, obesity, OSAS and COPD, etc.

Features

● 1.54-inch TFT screen
● Real-time monitoring of SpO2,PR,and PI.
● With SpO2 waveform, pulse intensity histogram.
● Stand-alone report, sleep report can be generated locally at the end of sleep test
● Bluetooth function, measurement data can be uploaded to APP in real time
● Large capacity can store 24 hours of data
● Easy to operation, connect the SpO2 probe to start the detection automatically
● Smart alert, vibrate to remind you when you exceed the preset range

APP

● Medical Institutions

Conduct sleep monitoring of the patient to assess the severity of OSAS, in order to work out the clinical treatment plan. This product can be used in the Department of Respiratory Medicine, Department of Cardiology, Department of Neurology, Department of Physical Examination and Department of Geriatrics.
  ● Health Management Centers and Clinics

Conduct sleep monitoring of the patient all night to assess the severity of OSAS, including monitoring such data as SpO2, PR and sleep stages, and the counts of sleep apnea.
  ● At-home Monitoring

Conduct continuous sleep monitoring of the snorer at night, including monitoring such data as the duration and counts of sleep apnea, the lowest SpO2 during sleep apnea, and the degree of impact of sleep apnea on physical health, all of which are of constructive significance for the primary screening or diagnosis of OSAS.
  ● Nursing Home

Conduct sleep monitoring of the elderly in the Nursing Home, which is helpful for the primary screening of OSAS.
  ● Out-of-hospital Rehabilitation

For patients on a ventilator or oxygen generators, this product can monitor the SpO2 level of the patient at any time, and assist in determining the degree of recovery of the patient, which will facilitate the dynamic adjustment of treatment plan.

Specifications

Display Type
1.54-inch TFT screen
Display Content
ID, Bluetooth connect state, Battery level, SpO2, PR, Pulse strenghth bar graph, PI, Measurement duration, Main unit operating state, PR measurement trend graph,SpO2 measurement trend graph, Pulse wave, Time
SpO2 Accuracy
Range : 80%~100% ±2%
70%~79%±3%
0%~69%: unspecified
PR Accuracy
Range : 25~250: ±3 bpm or ±2%, whichever is greater
Application
people with snoring, obesity, OSAS and COPD, etc.
Dimensions
47×55×17 mm
Weight
About 300g (full-configuration)
Power Supply
3.7V
Run Time
8 hours
Charge time (Only for Lithium battery)
2.5 hours
Product and Accessories
Main Unit*1
SpO2 Sensor*1
User manual
Charging Cable*1
